粮食定量包装机

粮食定量包装机特点

    DCS系列定量包装机包装秤是我公司自行研制开发的高科技机电一体化产品，采用了先进的仪表测量和PLC控制技术，使产品具有称量精度高、包装速度快、运行稳定、可靠性高、操作简捷等特点，产品以技术起点高、产品质量优等优点受到广大用户的青睐。
Features
  DCS series quantitative packaging machine packaging scale is developed by our company can be high-tech electromechanical integration products, adopt advanced instrument measuring and PLC control technology, make the products with high precision weighing, packaging speed, stable operation, high reliability, simple operation etc., products with excellent technology, high starting point, product quality advantages favored by the masses of users.

粮食定量包装机结构组成

    主要由物料进口、给料机构（闸门）、称量斗、夹袋机构、机架、吸风口、气动系统、传感器、控制箱、输送和缝包机构等组成。
Parts
     Mainly from the material, the feeding mechanism (gate), weighing hopper, folder bag institutions, frame, absorb, pneumatic systems, sensors, control box, transmission and FengBao institutions, etc.

粮食定量包装机工作原理

    物料由给料机构（气动闸门）加入称量斗，控制器收到传感器的重量信号后，按预先设定的程序值进行控制，开始时进行快速（快加、中加、慢加同时）给料；当重量≥（目标值－粗计量值）时，停止快加信号输出，进入中速（中加、慢加同时）给料；当重量≥（目标值－精计量值）时，停止中加信号输出，进入慢速（慢加）给料；当重量≥（目标值－过冲量值）时，停止慢加信号输出，给料门完全关闭，定值称量完成。夹袋信号输入后，称量斗卸料门自动开启，当重量≤零位设定值时，称量斗卸料门自动关闭，物料袋自动松开落入输送带上，被送到缝包机缝包之后进入下一工序，同时控制器进入下一控制循环。

Working principles
   Material  join the weighing hopper by feeding mechanism (pneumatic valve)， the controller receives the weight of sensor signal, according to preset procedure value control, fast at the beginning (fast plus, add, slow and at the same time) feeding;When the weight (target - coarse measurement value or higher), stop quickly add signal output, into the medium (add, slow and at the same time) feed;When the weight (target - fine measurement value or higher), stop adding signal output, into slow (slow) feeding;When weight (target - impulse value or higher), stop slowly add signal output, feeding door close fully, fixed value weighing.Clip bag after signal input, weighing hopper discharge door open, when the zero value or less weight, weighing hopper discharge door shut down automatically, automatically loosen falling into a conveyor belt and bag be sent to the sewing machine after FengBao into the next process, at the same time into the next control loop controller.

粮食定量包装机适用范围

    粮食、大米、种子、玉米、芝麻、肥料颗粒、橡胶颗粒、塑料颗粒、PP颗粒、PE颗粒、无机盐、工业盐、钢铁、煤炭、白砂糖、矿业、建材、建筑、港口、金属颗粒、饲料颗粒、油脂、制糖、食品颗粒、化工、轻工等行业颗粒状物料的定量包装。（有腐蚀性的物料，包装秤采用不锈钢材料制成）
Applications

   Grain, rice, seeds, corn, sesame seed, fertilizer granules, rubber granules, plastic particles, PP particles, PE particles, inorganic salt, industrial salt, iron and steel, coal, sugar, mining, building materials, construction, ports, metal particles, feed particles, grease, sugar, food, grain, chemical industry, light industry and other granular material of quantitative packaging.(corrosive materials, packing controller adopts stainless steel)

粮食定量包装机技术参数

型号规格： DCS－50系列
适用物料： 颗粒状物料
额定称量： 40～80kg
称量速度： 360包/小时
显示分辨率：10g
计量准确度：静态≤±0.1%、动态≤±0.2%
供气气源： 气压：0.6MP、用气量：0.5m3/h
供电电源：
包装秤： AC220V/50HZ    AC380V/50HZ
总功率：  (2.2+0.25＋0.37)kw
安装高度： 长×宽×高（3×1.3×3.3）m
总重量：≥650kg
温度范围： －10～40℃
相对湿度： ≤90%RH（无凝结水）
注：同时可根据用户的要求重新设计。

Parameters
Specifications: DCS - 50 series
Applicable materials: granular materials
Rated weighing: 40 ~ 80 kg
Weighing speed: 360 packages/hour
Display resolution: 10 g
Accuracy of measuring: static plus or minus 0.1% or less, dynamic plus or minus 0.2% or less
Gas source: pressure: 0.6 MP, gas use: 0.5 m3 / h
Power supply:
Packing scale: AC220V / 50 hz AC380V / 50 hz
Total power: kw (2.2 + 0.25 + 0.25)
The installation height, length x width x high (3 * 1.3 * 1.3 m)
Total weight: 650 kg or more
Temperature range: - 10 ~ 40 ℃
Relative humidity: 90% RH or less (no water)

Note: according to the requirements of the user at the same time to redesign.

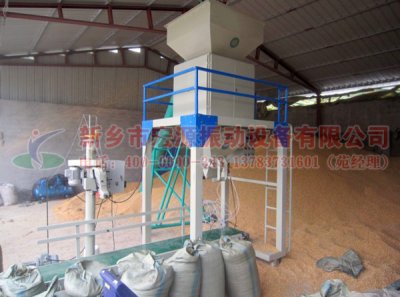

相关的配套设备使用现场
粮食清选筛分机筛分除杂，移动式螺旋输送机上料
